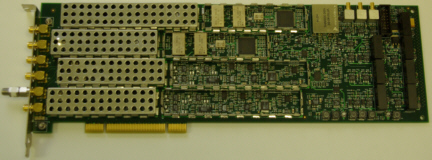

CNA Card

Click here for PDF version

A number of crystal measurement applications and VB6 ActiveX software are available.

PRINCIPLE: Agile, low phase noise DDS-based synthesizer / dual IF amplifier vector-voltmeter based network analyzer utilizing a standard PI-network. Design to meet or exceed measurement accuracy and capabilities of currently offered equipment.

Specifications

Frequency Range...............................................................................................................1-400 MHz
Frequency resolution.......... 0.233Hz for 1 – 400MHz , 0.03Hz for 1 – 25MHz, 0.014Hz for 1 – 5MHz
Parameters measured..................... FS, FL, R, CL, L1, C1, CO, Q, Trim,Drive level, Spurious modes
Ext. reference..........................................….........................10 MHz into 50 Ohms @ 50mV (optional)
Internal reference…………………………………………………………………………………+/-0.25 ppm
IF Frequencies……………………………………………………………….……..100kHz, 10kHz & 1 kHz
Input channel A sensitivity ....................…......................................................1uV – 200mV 1-200MHz
Input channel B sensitivity....................….......................................................1uV – 80mV 1-200MHz
Output Level………………………-52 to +18dBm regulated at output, in .01dB steps 1-200 MHz *
Power requirements...........................…...................................................... approx.25 Watts (from PC)
Dimensions (CNA-Card only) (LxWxH)............................................Full size PC slot 32.5cmL x 11cmH
Weight (CNA-Card only)..........................................................................................................300grams
* maximum voltage is slightly reduced 200-400 MHz

Complete system includes:

  • Crystal Network Analyzer (CNA-Card)
  • TFP PI Network
  • System computer, optional printer
  • System cabling
  • Documentation

Ordering Information

CNA-Card/SYS................…………………………………………………………......……...Part# 00017500
