Variable Load Capacitances for Transat PI Networks Data Sheet

Description

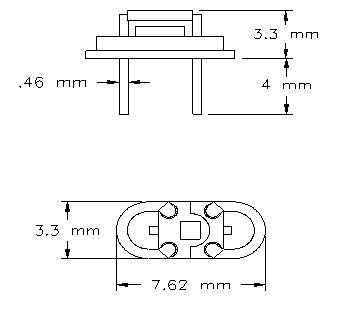

Transat offers Variable Load Capacitance Inserts which can be plugged into the load socket of various Transat PI Networks. Shown at the right, it consists of a fixed chip capacitor connected in parallel with a variable ceramic capacitor, mounted on a HC-45 base. It is adjusted from the top by means of an adjustment tool. Transat PI Networks which contain load insert sockets have an inherent capacitance of about 4pF. This capacitance needs to be considered (ie added) when selecting a Variable Capacitor Insert.


Ordering Information

Variable CL Insert

5.0 -7.0pF

P/N 01012758-6

7.0 -9.0pF

P/N 01012758-8

8.7-10.7pF

P/N 01012758-10

10.5-12.5pF

P/N 01012758-11.5

12.5-14.5pF

P/N 01012758-13.5

13.0-17.0pF

P/N 01012758-15

16.0-20.0pF

P/N 01012758-18

19.0-23.0pF

P/N 01012758-21

23.0-27.0pF

P/N 01012758

27.0-32.0pF

P/N 01012758-30

Temperature Sensitivity

The capacitive temperature dependence is about 20ppm per °C for the fixed ceramic capacitor and 200ppm per °C for the variable portion of the insert. In the worst case this results in a composite temperature dependence of about 60ppm per °C. The corresponding load frequency dependence can be determined from the equation:

DFL = DCL ( C1/2 (CO+CL)2)

For example, for CO=5pF, C1=13pF, CL=20pF, and a 60ppm per °C change in CL, one obtains a DFl of about 0.01 ppm °C. This is negligible for most plating purposes.
