Highlights

• High speed, sorting up to 2400 pcs./hr
• Intuitive, easy to use windows based software makes setup and use a snap!
• Quick and precise crystal blank measurement is easily handled by the model CNA-300 analyzer
• A mechanical cam style main drive system ensures precise and repeatable high speed movements
• "Quick exchange" dies allow for simple conversions between different crystal blank dimensions

Additional Features

• Network analyzer allows display of blank frequency spectrum
• Sort on highest resonance amplitude or on first or subsequent resonance responses
• Two sweep modes; Coarse (wide sweep) or Fine (narrow sweep)
• Gentle vacuum and bowl feeder system handles blanks without damage
• Distribution and statistical data records with graphical reports
• Highly repeatable, adjustable air gap with digital display
• Reflection method of measurement allows simple electrode setup and maintenance

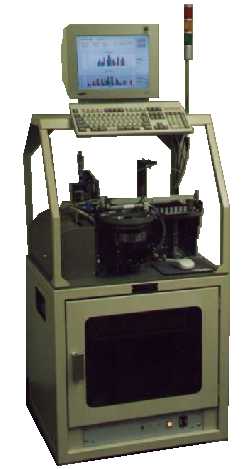

The model ABS-28GF is a state-of-the-art, fully automatic crystal blank sorter. This high performance system has been packaged through the coordinated efforts of Transat Corp. and the Sansei Denshi Co. Ltd., a world leader in the design of electromechanical automation solutions. This system offers the precise crystal measurement technologies delivered by Transat instrumentation combined with the high speed and rugged mechanical engineering expertise of the Sansei Denshi Company. The model ABS-28GF sorter gently delivers your blanks segregated into 28 individual compartments. Test and sort criteria are easily configured through the user friendly Windows® based software package.

Ordering Information
Contact factory for application and configuration assistance.
