SC-6SA® Final Plating Controller Upgrade CNA-300/6SA Data Sheet |

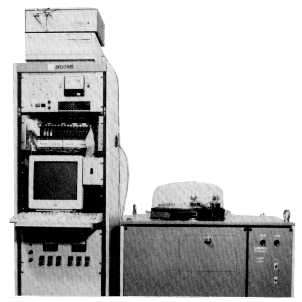

The Model CNA-300/6SA is an upgrade package designed to replace the measurement and plating control originally supplied with the Showa Shinku model SC-6SA Crystal Final Plating System. The Transat CNA-300 Crystal Network Analyzer replaces original oscillators to provide a fast, precise transmission method measurement of the crystal. Transat’s crystal plating control algorithm allows continuous plating. Parts can be plated in 1 pass (rotation). The upgrade makes no substantial change to the mechanical operation of the system. The filament post, plating wheel, masking and shutter are left as originally supplied. The upgrade can not improve plating behavior which relies on the existing mechanical operation of the system. Plating data is continuously updated during operation and can also be printed and/or logged to a computer file. No special skills are required to operate the software. Self explanatory commands allow for easy immediate use of the system. Custom test setups (files) can be created, stored, and easily recalled, simplifying operator use. Installation of the upgrade is quick and easy. Full and detailed documentation is available to guide the user in installing the upgrade. If preferred, arrangements can be made for Transat service personnel to perform the upgrade on-site.
| Frequency Range | 1-256 MHz |
| Plating repeatability | +/- 2ppm, typical |
| Drive Power | 1uW-to-1mW; crystals 10 to 100 ohms |
| Wheel Types | 72 or 144 position |
| Power requirements | 100/120/200/220/240VAC, 50W, 50/60Hz |
| CNA-300 Dimensions (LxWxH) | 30.5cm x 43.8cm x 13.3cm |
| Weight (CNA-300 only) | 5Kg |
Ordering Information
P/N 00013430: CNA-300/SYS
(Includes Pi contact for 72 position plating ring w/sockets)
"SC-6SA" and "6SA" are Register Trademarks of Showa Shinku Co. Ltd.
